| Place of Origin: | China |
|---|---|
| Brand Name: | Modern |
| Certification: | CE,ISO 9001 |
| Model Number: | SBW |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 unit/month |
| Capacity: | 120KVA | Votage Stability Range: | -5%~+5% |
|---|---|---|---|
| Protection Class: | IP20 | Electrical Safety: | CE |
| Frequency: | 50Hz | Input Voltage Range: | 380V+-20% |
| Highlight: | automatic voltage regulator avr,high power voltage regulator |
||

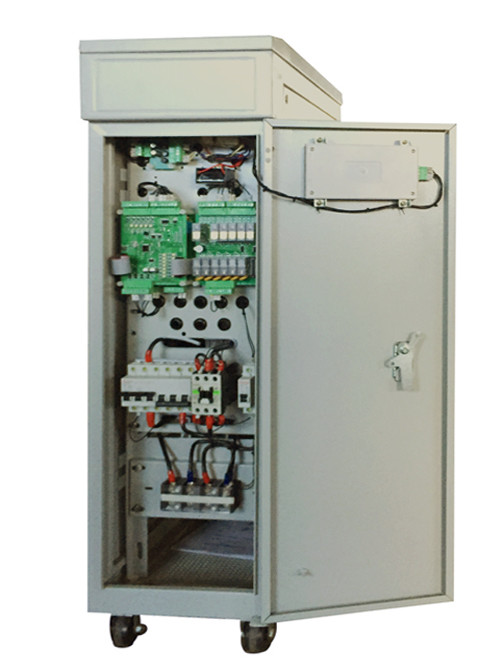

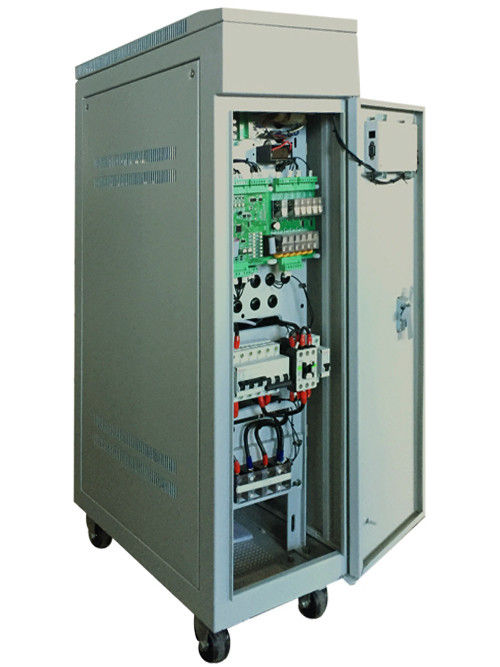

SBW/DBW Automatic Industrial Voltage Regulator Three Phase 120KVA,High Quality,High Efficiency and Energy Saving
Working principle
SBW, DBW Europe Technology High Precision Electronic voltage Stabilizer is designed for stable AC voltage by inducing and absorbing the Western Europe advanced technology.at the same time combined our national condition. When the outside power supply network voltage fluctuates or the load changes to make the voltage undulation, it can automatically maintain the output voltage to be stable.
Comparing with other type voltage regulator, this series product has big capacity, high efficiency undistorted waveform, steady regulation voltage and so on the merit,widely suitable load, withstand instantaneous and overload, long-term continuous working, manual/automatic switching, equipped with the over-voltage protection, lacking phase, phase sequence protection and mechanical breakdown automatic protection, as well as small volume, light weight,convenient usage and installment, reliable movement and so on merit, (two kinds of digital display and instrument indication)
Voltage Regulator Feature:
Extremely wide voltage regulation range
Maintenance free roller type carbon brush
Individual regulation with unique small dimension
Maximum capacity up to 5000KVA
High Mean time Between Failure(MTBF)
Reliable and quiet servo motors
Wheels mounted for easy installation
Start up delay to prevent over current inrush
Isolation transformer on request
Indoor or outdoor version on request
Main technical parameters
| Input Voltage | DBW SBW |
| 220±15%,20%,30%,50% 380±15%,20%, 25%30%,50% | |
| Output Voltage (Preset at 1.5%) | 220Vac±1-5% 380Vac±1-5% |
| Efficiency | >98% |
| Precision | 1-5% |
| Frequency | 47-53Hz |
| Response Time | <0.5S/20V(Line Voltage) |
| Insulated Strength | 2000V/1 minute without puncture 2500V/1 minute without puncture |
| Insulated Resistance | >2MΩ |
| Wave Deformation | Nil |
| Isolation transformer | Optional |
| Surge Protection | Optional |
